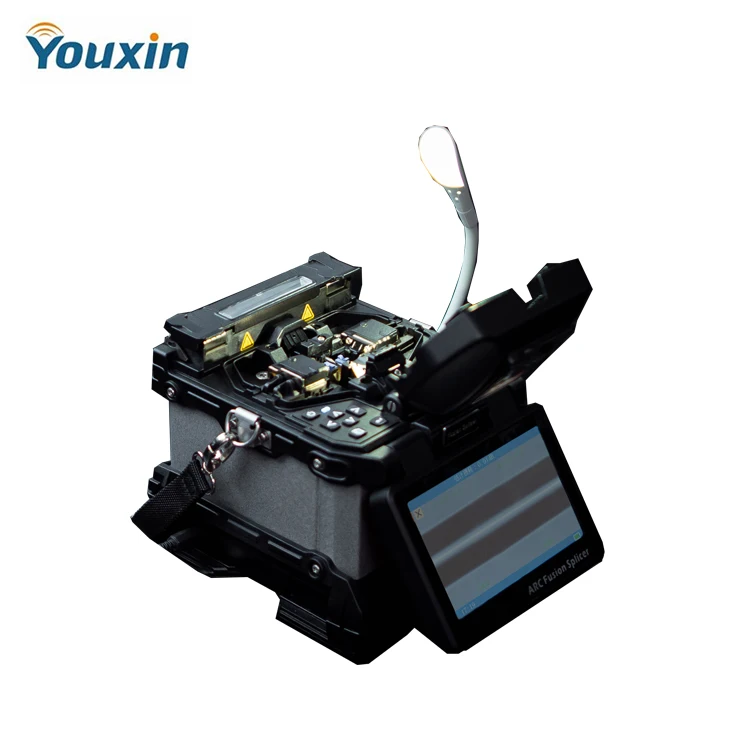

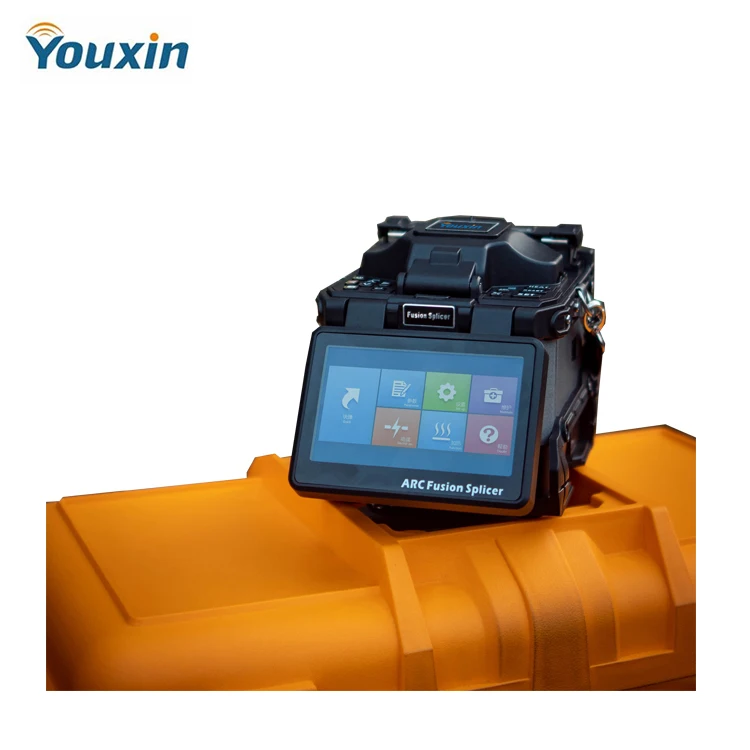

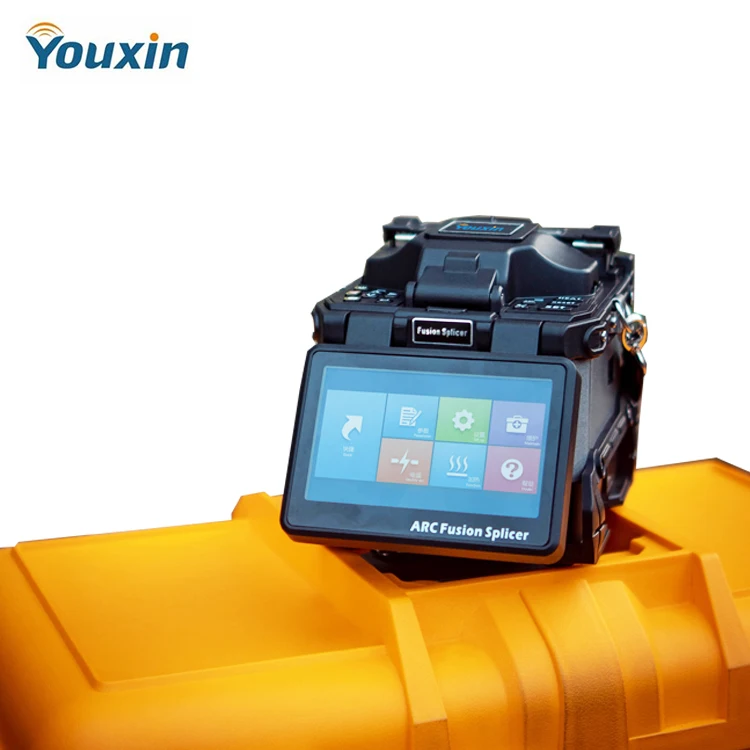

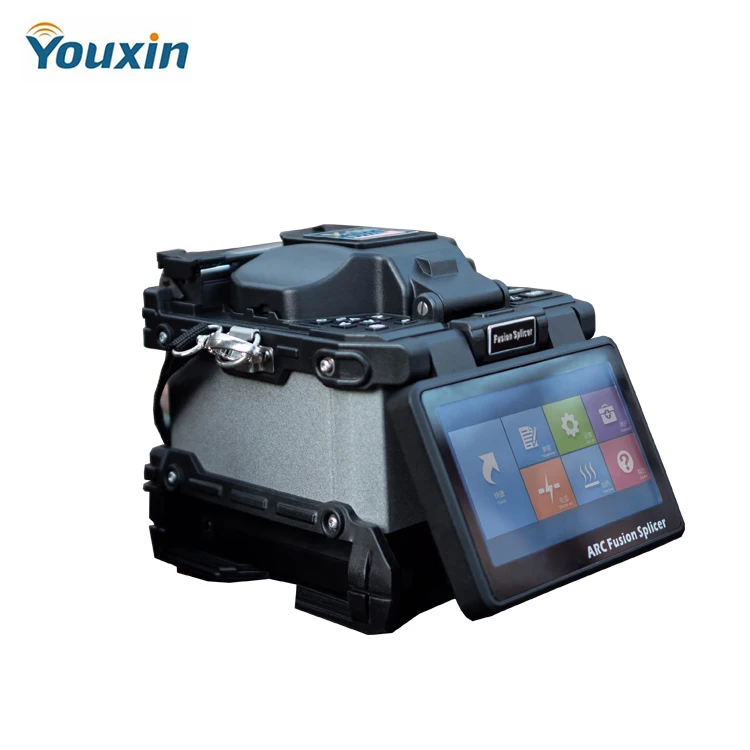

FSP-900 Optical Fiber Fusion welding machine

FOB Reference Price:Get Latest Price
$800.00 - $1,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
CHINA
Brand Name:
YOUXIN
Model Number:
FSP-900
Product name:
welding machine
Diameter of cladding:
80~150μm
Diameter of coating:
160 ~ 900μm
Supply Ability
Supply Ability:
100 Piece/Pieces per Month welding machine
Packaging & Delivery
Packaging Details
Packing of welding machine:By standard export carton
Port
Shanghai, Ningbo
Place of Origin:CHINA
Brand Name:YOUXIN
Product name:welding machine
Diameter of cladding:80~150μm
Diameter of coating:160 ~ 900μm
8s splicing stime, 26s tube heating time
Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Terminals USB 2.0 port, for uploading splice results and upgrading software
Dimension 149mm(L)x120mm(W)x127mm(H)
Weight 1.9kg including battery

Features
Handheld, Small, Light
Industrial standard screen
Various colors are available
Core to core digital alignment
8s splicing stime, 26s tube heating time
5200mAh and pluggable Li-battery, Typical 200 cycles
ARC calibrated by temperature and air pressure automatically
Automatically switching on windshield and heater in 4 steps
Apply to bare fibers, indoor cables and jumper wires splicing

Description
FSP-900 is an economic and competitive fusion splicer machine for optical network engineering. compact, simple and slim body, multiple foreign languages menu, handheld power in the machine, convenient and easy to operate indoor and field.
Fiber core can be display clearly, Single X or Y view and X & Y view simultaneously, Auto check quality of cleaved end face, Auto select best splicing program, 9 seconds splice time and 30 seconds heat time, Small bulk and light weight, 5 inch color LCD monitor with clear digital image display, Simple Operation menu.

Specifications
Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Fiber count Single
Applicable fiber
dimensions
Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm
Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Package
Main machine *1
Fiber Cleaver *1
Electrodes *2
Fiber Stripper *1
Skin Line Stripper *1
Cooling Tray *1
Adaptor *1
Power Cord *1

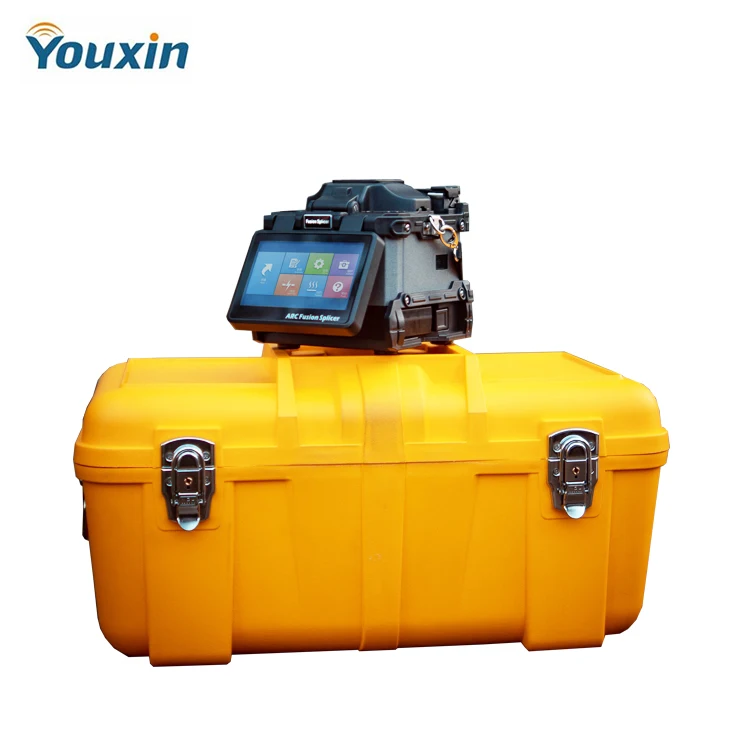

Carrying Case *1
Manual(CD) *1
