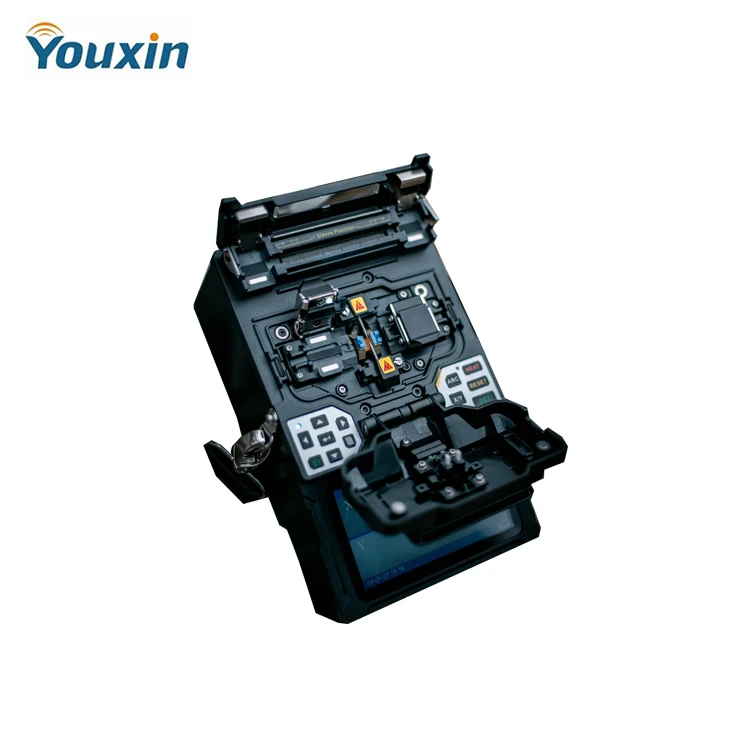

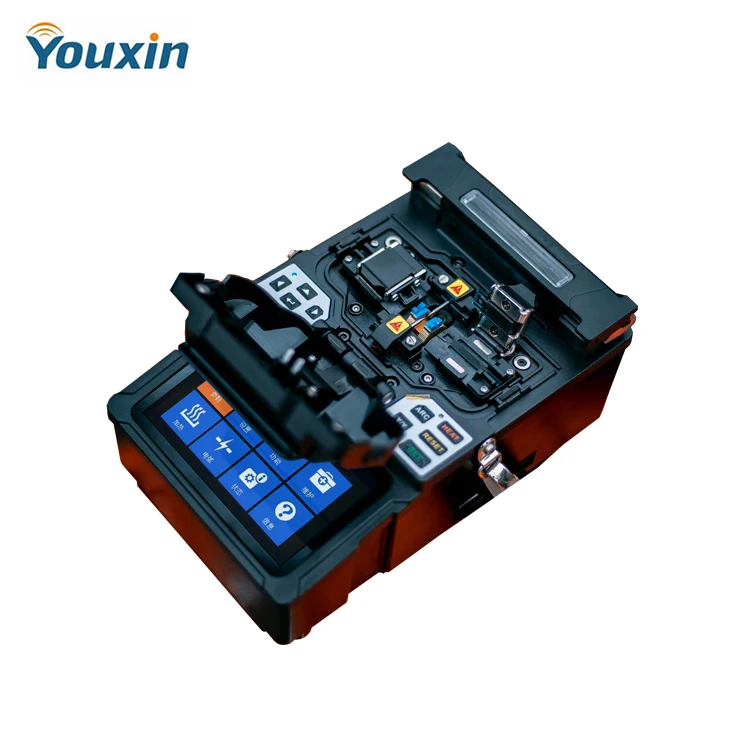

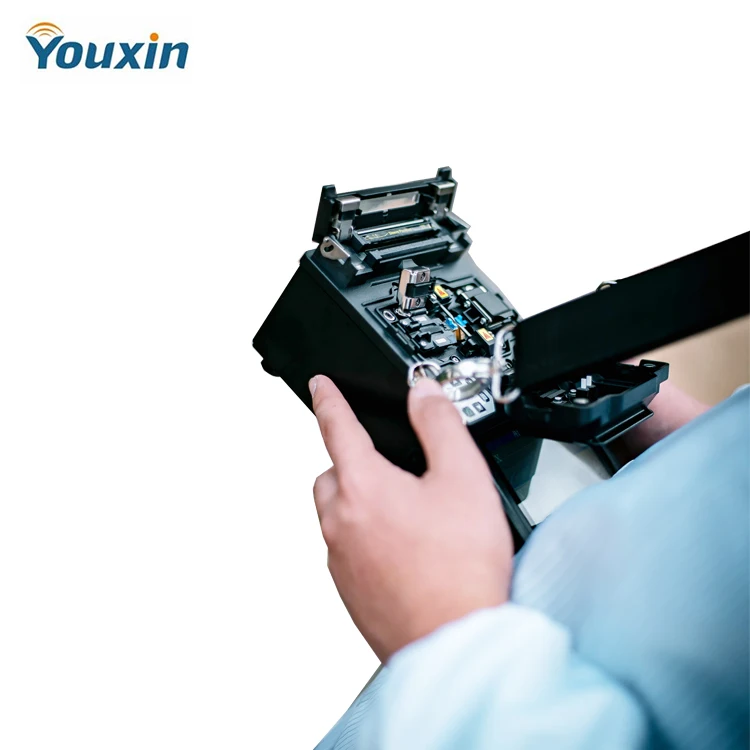

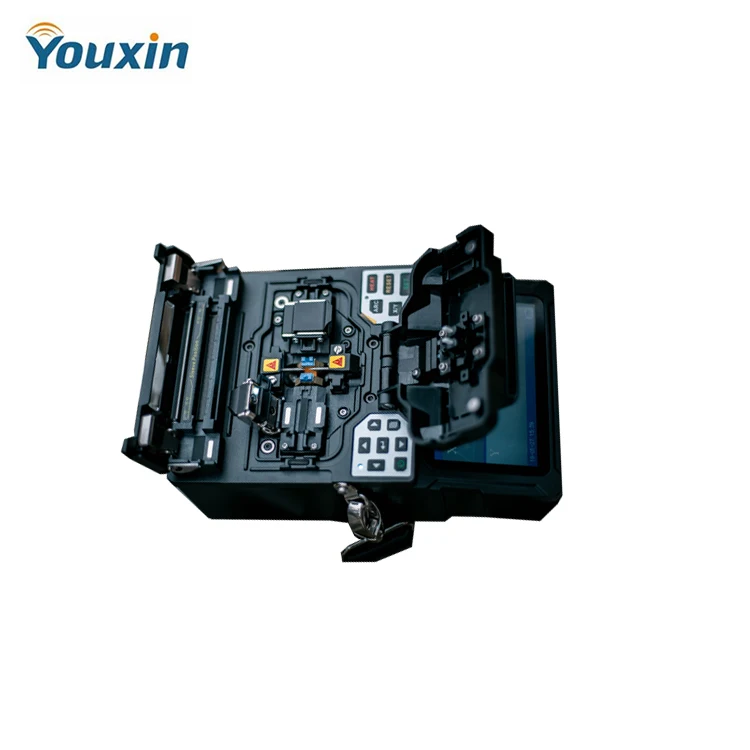

FSP-600 Optical Fiber Fusion welding machine

FOB Reference Price:Get Latest Price
$750.00 - $900.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
CHINA
Brand Name:
YOUXIN
Model Number:
FSP-600
Product name:
welding machine
Performance:
7s fast splicing, 26s intelligent heating
Diameter of cladding:
80~150μm
Diameter of coating:
160 ~ 900μm
Applicable Fibers:
SM(G.652), MM(G.651), DS(G.653), NZDS(G.655)
Typical splice loss:
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Fiber cleaved length:
10-16mm (coating diameter< 250μm )
Dimension:
200(L)x123(W)x95(H)mm
Weight:
1.6kg including battery
Supply Ability
Supply Ability:
100 Piece/Pieces per Month welding machine
Packaging & Delivery
Packaging Details
Packing of welding machine:By standard export carton
Port
Shanghai, Ningbo
Place of Origin:CHINA
Brand Name:YOUXIN
Product name:welding machine
Diameter of cladding:80~150μm
Diameter of coating:160 ~ 900μm
7s fast splicing, 26s intelligent heating
Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Typical splice loss SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Fiber cleaved length
10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Dimension 200mm(L)x123mm(W)x95mm(H)
Weight 1.6kg including battery

Features
*Small, light , long battery life
*4 motors accurate core alignment
*7s fast splicing, 26s intelligent heating
*More than 4000 times electrodes discharging
*4400mAh Li-batery, 220 cycels splicing and heating
*Inductive automatic heater, not heating without fibers
*3 in 1 multi-function clamps, new waterproof structure
*Apply to bare fibers, drop cables and jumper wires splicing

Description
FSP-600 is an economic and competitive fusion splicer machine for optical network engineering. compact, simple and slim body, multiple foreign languages menu, handheld power in the machine, convenient and easy to operate indoor and field.
Fiber core can be display clearly, Single X or Y view and X & Y view simultaneously, Auto check quality of cleaved end face, Auto select best splicing program, 9 seconds splice time and 30 seconds heat time, Small bulk and light weight, 5 inch color LCD monitor with clear digital image display, Simple Operation menu.

Specifications
Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Applicable fiber SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding 80 -150μm
Diameter of coating 160 – 900μm
Typical splice loss SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB

Standard Package
Main machine *1
Fiber Cleaver *1
Electrodes *1 pair
Fiber Stripper *1
Drop Cable Stripper *1
Adaptor *1
Power Cord *1
Carrying Case *1
Trap *1
Manual(CD) *1
