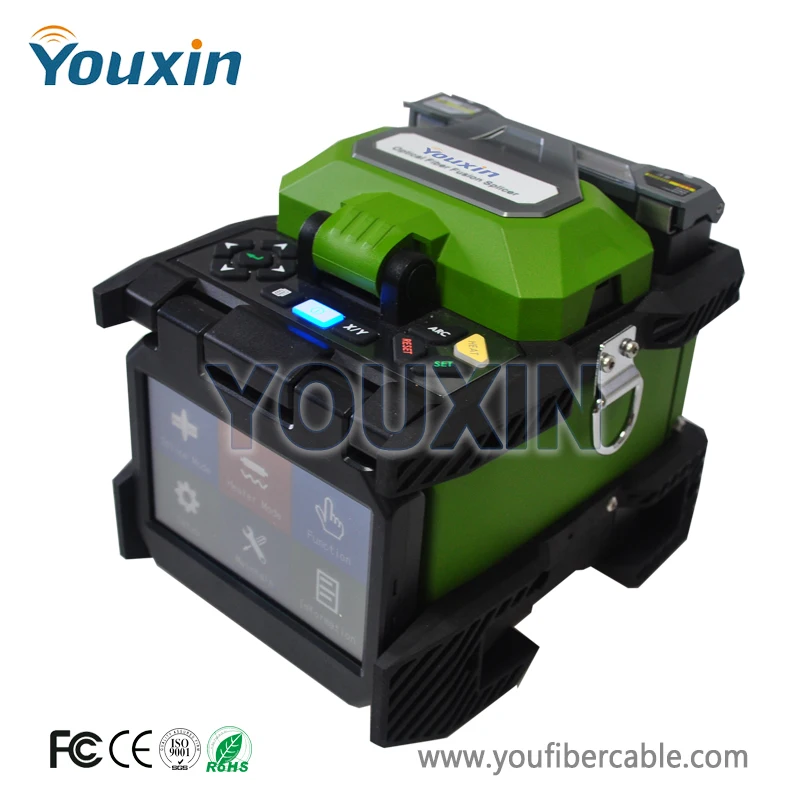

FTTH Fiber Optic Splicing Machine Fusion Splicer AV6481 Digital Fusion Splicer Including Fiber Cleaver Stripper

FOB Reference Price:Get Latest Price
$1,000.00 - $1,500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Model Number:
FSP-800 AV6481
Splicing Time/Heating:
4000 results
Data Transmission:
USB port &VGA
Vertical 152times,horizontal 304times
TElectrode Lifetime:
>4000 times, replaceable
Battery Lifetime:
Cycle life up to 300~500 times, replaceable
Battery Life:
220 times splicing & heating/charge
2kg including battery
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
By standard export carton
Shanghai, Ningbo
Detailed Info
Fusion Splicer(FTTH) for drop cable and pathcord, with USB and VGA interface, 5.7 inch color screen, standard accessories. Multiple language menu options, with cleaver.
1. Precise fiber core alignment, ultra-low fiber fusion splicing consumption
2. 7s fast fusion splicing, 18s highly efficient heating.
3. 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
4. 300 groups of fusion splicing modes, 100 groups of heating modes
5. 10000 groups of fusion records, 64 images storage
6. Ceramic presser foot, ceramic V-block, all-in-one fixture
7. Dual-direction splicing, automatic splicing, intelligent pyrocondensation
8. USB and SD card interfaces, U-disk automatic software upgrade
9. Built-in modular lithium battery, supports 220 times of splicing and heating cycles
Product overview
Obtaining 16 patens of invention and 58 technical innovations, a brand-new product—FSP-800 AV6481 Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers.
FSP-800 AV6481 implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with AV6471, our star product, AV6481 lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.
