Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YOUXIN
  • Model Number: OR2201
  • Input optical wave length: 1290-1600nm
  • Output optical wave length: 1310±20nm/1490±20nm
  • Application: GEPON network
  • RF bandwidth cover range: 47~1000MHz
  • Maximum output level: 82±2dBuV@-6dBm
  • Power Supply: DC12V
  • outer size: 113*50*22mm

Packaging & Delivery

Packaging Details By standard export carton
Delivery Time 3-5 days
Detailed Info

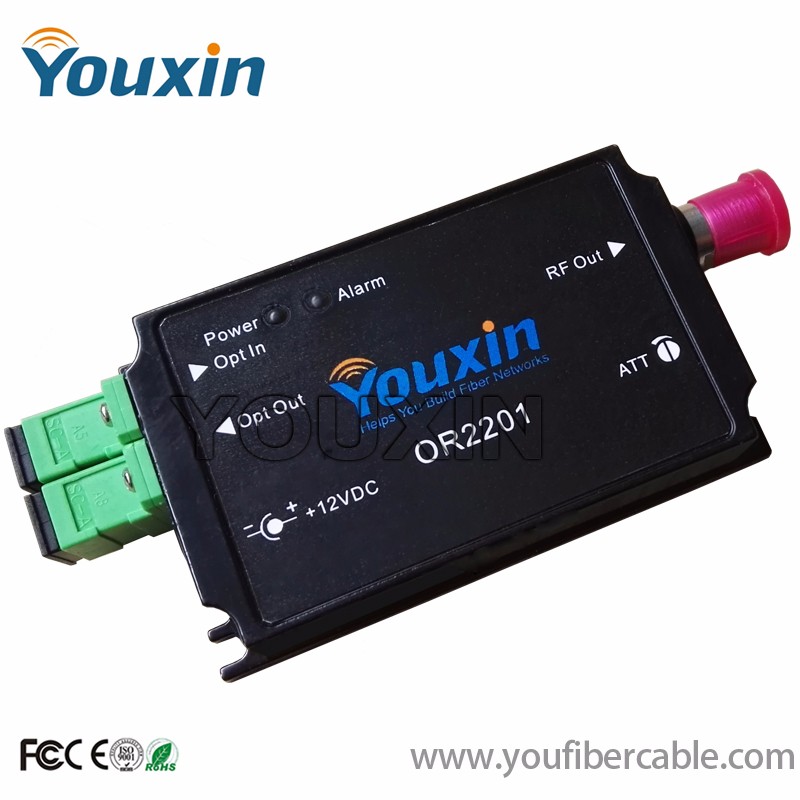

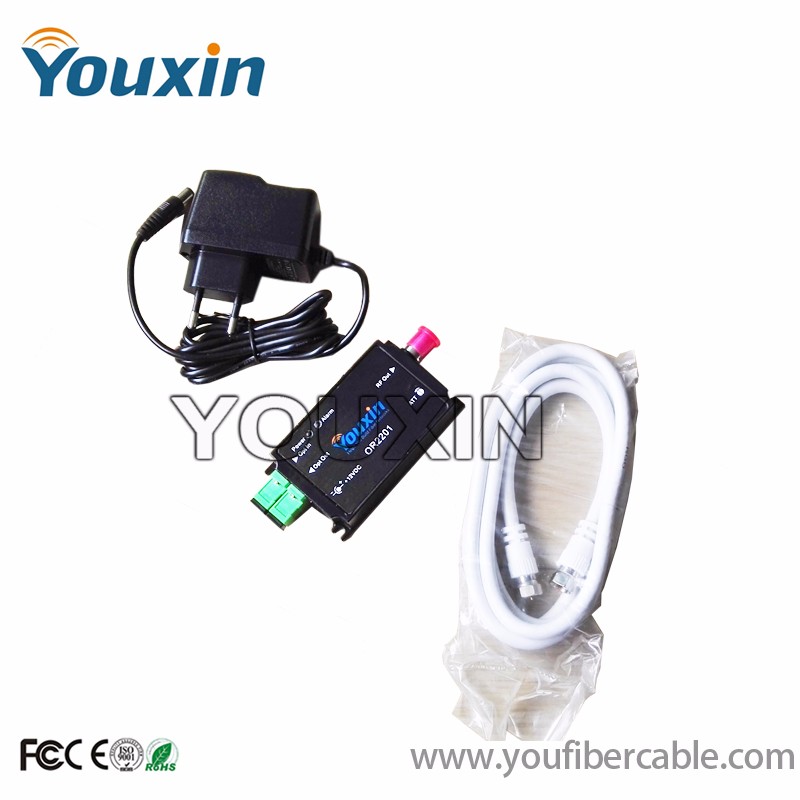

FTTH mini WDM optical receiver,1 output ports, wavelength:1290~1600, frequency:47-1000MHz, imperial F type female port, SC/APC connector, rated output level 82dBuV (input optical power -8dBm), 12V/DC



Features
(1) Built-in CWDM, RFTV operating in 1550nm wavelength, reach GEPON ONU through 1310/1490nm wavelength.
(2) Extra-low noise (3.5% modulate,-10dBm receive, CNR ≥ 45dB).
(3) AGC control, output level keeps stable as 85dBuV @-7~-2dBm receiving
(4) Good linearity index when receiving optical power in the range of -12~+3dBm.
(5) RF output level adjustable.
(6) Compact design.
(7) Good heat dissipation.
(8) Low power consumption.





Description:

Desktop home optical receiver is specially designed for FTTH application scene. It adopts MMIC amplifying circuit to ensure excellent CTB,CSO and C/N data within -8~0dB input optical power. Mainly used in CATV HFC system, converting the received CATV RF optical signal to electric signal.



Parameter:







No.

Item

Description

Optical part

1

Input optical wave length

1290÷1600nm

2

Output optical wave length

1310±20nm/1490±20nm

3

Isolation

1490nm to 1550nm RX ≥40dB

1310nm to 1550nm RX ≥40dB

4

Insertion loss(between input and output)

≤1.5dB@1310nm&1490nm

5

Receiving responsibility

≥0.9A/W@1550nm

6

Input optical power

≥-8dBm~0dBm@1550nm

7

Optical interface reflection loss

45dB

RF part

8

RF bandwidth cover range

47~1000MHz

9

RF output resistance

75Ω

10

Flatness

±1.5dB

11

Output reflection loss

≥13dB(47~1000MHz)

12

Maximum output level

82±2dBuV@-6dBm

13

Nominal output level

75dBuV@-6dBm

14

MER

≥32dB@-6dBm (60 64QAM signal)

15

CNR(Note1)

≥45dB@-6dBm

16

CTB(Note1)

≥65dB@-6dBm

17

CSO(Note1)

≥65dB@-6dBm

18

Input power

+12VDC±3%

19

Power consumption

5W

20

O-ALM state indicate LED

Green often bright: Input optical power is within receiving range(-6dBm±0.5dB~0dBm)

Red often bright: Input optical power is lower than receiving bottom limit (-8.5dBm±0.5)

21

PWR state indicate LED



Green often bright: the inner power supply circuit of the receiver is normal.

Turn off: The inner power supply circuit is abnormal or without external input.

22

Manual gain adjustment range

-20dB~0dB

23

Dimension

113×50×22mm



Note1:60 CH (PAL-DK), Pin -6dBm, Nominal output level 75dBuv,3 EDFA with noise figure 5dB, 65Km, Composite OMI 18.9%.



Applications
 HFC/CATV network
