Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YOUXIN
  • Model Number: AV6418
  • Applicable Fiber: SMF and MMF
  • Display: 640*480, 6.5 inch TFT-LCD (touch screen)
  • Dimensions: 295*186*75(mm)
  • Dynamic Range(SNR=1): 26/24dB30/28dB35/34dB
  • Central Wavelength(nm): 1310/1550nm
  • Optical Connector: FC/PC(ST,SC standard)

Packaging & Delivery

Packaging Details By Standard Export Carton


Chinese OTDR with VF&OPM, different module, different wavelength, 640×480, 6.5 inch TFT-LCD, 0.01dB loss threshold, event dead zone <1.6m, attenuation dead zone. Please choose the following module



Features :
 Handheld.lightweight and convenience for carrying
 45dB high dynamic range
 ≤1m extra-short event dead zone
 0.05m high distance resolution,128k sampling points
 Fast auto measurement, one-button operating
 Test up to four wavelengths with a single unit
 Communication light check automatically
 Remote function via Ethernet
 Double USB interfaces, supporting USB stick and
 printer and direct cable download to PC via ActiveSync
 Supporting Bellcore GR196 file format in writing or reading
 Built-in lithium battery with high capacity for over 8 hours of operating life
 Visible fault locating (VFL) and optical power meter
 Universal FC/PC,FC/SC,FC/ST connector type, it's convenient for surface cleaning

Description

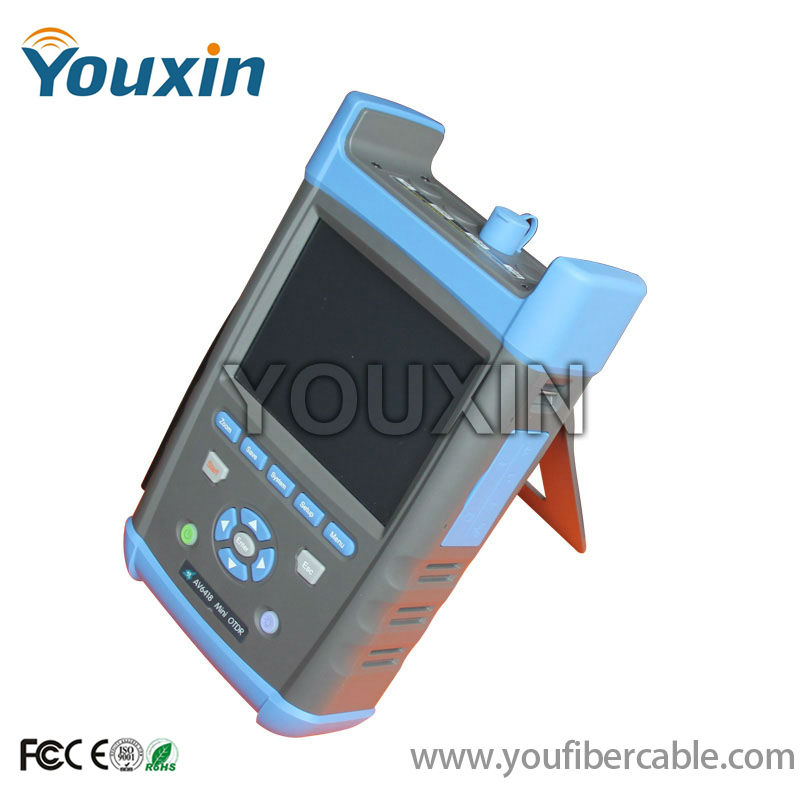

AV6418 OTDR is a high performance measuring instrument with multifunction designed for testing FTTx network. It's mainly used to measure the physical characteristics of optical fiber under test, such as the length,the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber. It's widely applied in the manufacture, construction and maintenance in optical fiber communication system.

Parameter
Dynamic rangePlease refer to "OTDR modules specifications"
Distance uncertainty±(0.75m + sample space + measurement distance×0.0025%)1
Sampling resolution0.05,0.1,0.2,0.5,1,2,4,8,16m
Distance range0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512km(SMF);
0.4,0.8,1.6,3.2,6.4,16,32 (MMF of 850nm)
Pulse width5,10,30,80,160,320,640,1280,5120,10240,20480ns
5,10,30,80,160,320,640,1280 (MMF of 850nm)
Loss threshold0.01dB
Sampling pointsUp to 128k
Linearity0.05dB/dB
Loss resolution0.001dB
Memory capacity≥800traces(build-in), ≥65500traces(2GB SD storage)
Group refractive index setting1.00000 to 2.00000 (0.00001steps)
Distance unitkm,m,kft,ft
Display640×480, 6.5 inch TFT-LCD (touch screen)
InterfaceUSB, Min-USB, Ethernet, earphone, SD
Optical connectorFC/SC/ST (universal connector)
VFL650nm±10nm,2mW(typical);CW/1Hz
Optical Power MeterWavelength range: 1200nm to 1650nm Measurement range: -60 to 0dBm Measurement accuracy: 5%(-10dBm, CW)
Power supplyAC adapter 100 to 240V, 50/60Hz, 1.5A DC:19V±2V(2A) Built-in Lithium battery: 4400mAh, operating time ≥8 hours 2
LanguageUser selectable: simplified Chinese, English, Russian, Korean etc.. (please contact CETC 41st for others)
EnvironmentOperating temperature: -10 to 50°C(charging:5 to 40°C)
Storage temperature: -40 to 70°C(Battery: -20 to 60°C)
Relative humidity: 5% to 95%, non-condensing
Dimensions295×186×75(mm)
Weight2.5kg Approx.
