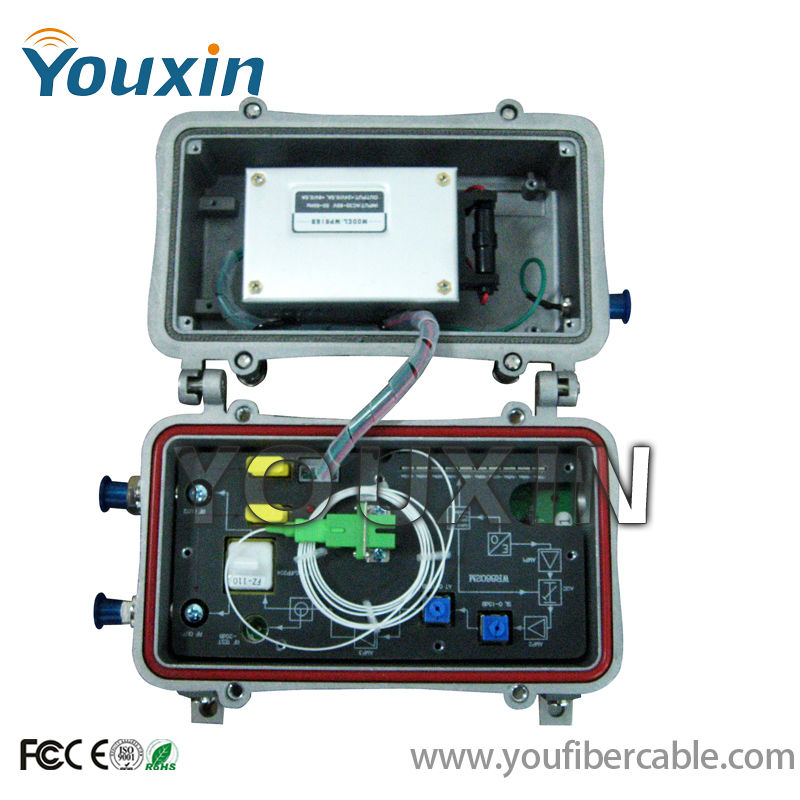

Mini Optical Node for CATV Network (two output,for PHILIPS module)

FOB Reference Price:Get Latest Price
$50.00 - $70.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
YOUXIN
Model Number:
OR5200
Input Wavelength:
1290~1650nm
Frequency Range:
47~862MHz
Input Optical Power:
-7~+2dBm
RF Output Level:
104dBuV
Power Supply:
AC35~90V or AC110~265V
Optical Connector:
SC/APC or FC/APC
Output Wavelength In Return Path:
1310±10nm
Output Optical Power In Return Path:
1/2/3mW
Certificates:
CE/RoHS/ISO9001:2008
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
By standard export carton
Port
Shanghai, Ningbo
Detailed Info
Optical receiver with E-O pin diode and for PHILIPS amplifier module, 2 output ports, 45/87-862MHz, imperial F female port, FC/APC or SC/APC connector, rated output level 108dBuV (input optical power –2dBm), waterproof housing, AC135~250V (power cord with EURO (2 pole with GND) or USA standard plug (3 pole)) or 35~90V.(SNMP management is optional)

Features :
(1)  High quality E-O PIN-diode receiving module
(2)  Four-stage input optical power LED display
(3)  Wide range of input optical power
(4)  for PHILIPS Power Doublers output module
(5)  Plug-in splitter(tap) in output and plug-in return path module
(6)  Local and remote powering
(7)  Weatherproof and RF-screened die-cast housing



Parameter
Item
Specification
Forward optical receive parameter
Optical parameter
Input power range
-5~+2dBm
Suggested work range
-3~+1 dBm
Optical return loss
>45 dB
Optical wavelength
1100~1600 nm
Operating fiber type
single mode
System parameter
C/N
51 dB
C/CTB
>65 dB
C/CSO
>60 dB
RF parameter
Frequency range
45/87~862 MHz
Flatness
±0.75 dB
Rated output level
90(Input Optical Power -2dBm)dBuV
Max. output level
100 dBuV
Return loss
≥16(47-550MHz);≥14(550-862MHz) dB
Output impedance
75Ω
Noise power ratio dynamic Range
≥10 dB (NPR≥30dB)
Connectors
FC/APC or SC/APC, F connector imperial thread
Power supply
AC135~250V(local powering)
AC35~90V(remote powering)
Power consumption
26 W
Operating temperature
-40 ~ +60 °C
Storage temperature
-40 ~ +65 °C
Relative humidity
max. 95% no condensation
Dimension
205x140x80mm

Description
OR5200 Series Field Optical Receiver are the most common transmission equipment of CATV HFC, which mainly used in long distance optical fiber transmission for TV video signal, digital TV signal, telephone voice signal and data signal(compressed data).
Since our first CATV optical receiver come to market in 1995, we have done deep research on all kinds of technical performance parameters for more than 10years, accumulating a lot of experience in product development and engineer in practice. The internal circuit and external structure are much better and the performance is upgraded.
